Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

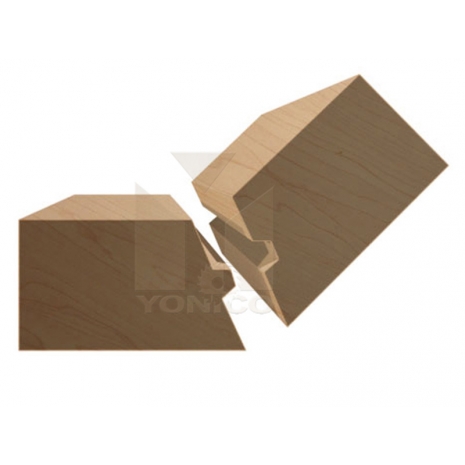

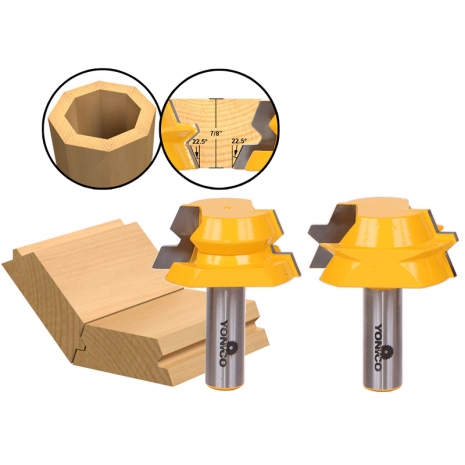

This set will cut 22.5 degree miters to make 45 degree joints. Put a 45 degree joint in place of a 90 degree angle to soften a sharp look. Then, you can cover the new surface with a column for added beauty. Great for 8 sided projects such as planters. Two flute carbide cutters & 1/2" shanks. Set comes in a solid wood storage case.

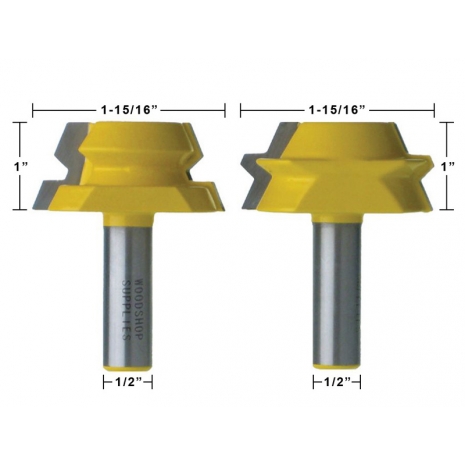

Bit Specs
Material:
Carbide Tipped
Number of Bits:
2
Cutting Length:
7/8"
Degrees:
22.5°
Number of Flutes:
2
Minimum Stock Thickness:
1/2"
Maximum Stock Thickness:
7/8"
General Info
Release Date:
11/01/2012
Condition:
New
Item #:
15220
UPC:
765573826906
Brand:
Yonico
Design:
Lock Miter
Product Type:
22.5° 2 Bit Lock Miter Router Bit Set
Manufacturer:
Yonico
MPN:
15220
Weight:
1.28 lbs.
