45 Degree - Up to 1/2" Stock Lock Miter Router Bit - 1/2" Shank - Yonico 15129

$20.95
Short description:
Use the reversible 45° lock miter glue joint Router bit to join boards at 90°. The interlocking 45° cuts will produce extremely strong joints without having to struggle to keep the boards in place during clamping. Additionally, it will provide extra gluing surface resulting in an extremely strong and durable joint. When positioned properly, the bit will cut both pieces of stock without having to adjust the bit. Simply set the center of the stock to the center of the bit. Then, cut one piece horizontally and the second one vertically. Ideal for use with 1/2" stock. Two flute carbide cutters & 1/2" shank.
15129
In stock
+

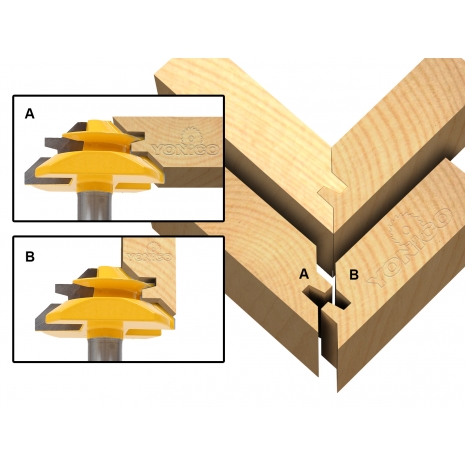

Use the reversible 45° lock miter glue joint router bit to join boards at 90°. The interlocking 45° cuts will produce extremely strong joints without having to struggle to keep the boards in place during clamping. Additionally, it will provide extra gluing surface resulting in an extremely strong and durable joint. It can be little tricky at first but when positioned properly, the bit will cut both pieces of stock without having to adjust the bit. Align the center of the cutter with the center of the stock when the stock is in the horizontal position and in the vertical position. Then, cut one piece horizontally and the second one vertically and the joint should line up perfectly. Instructions are available from the manufacturer upon request. Note: Lock miter bits only work properly on solid wood. MDF and plywood are not recommended.

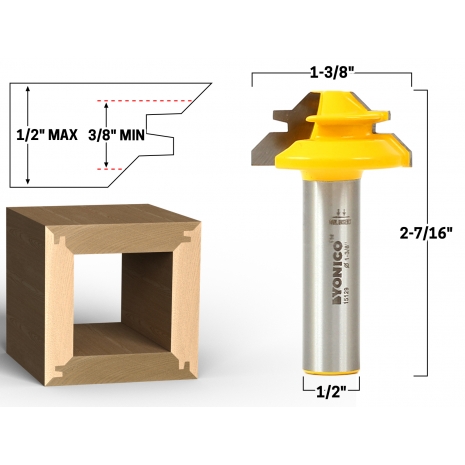

Bit Specs

Material:
Carbide Tipped
Number of Bits:
1
Shank Size :
1/2"
Cutting Length:
1/2"
Overall Length:
2-5/8"
Largest Diameter:
1-3/8"
Degrees:
45°
Number of Flutes:
2
Minimum Stock Thickness:
3/8"
Maximum Stock Thickness:
1/2"

General Info

Release Date:
11/01/2012
Condition:
New
Item #:
15129
UPC:
765573826814
Brand:
Yonico
Design:
Lock Miter
Product Type:
Lock Miter Router Bit
Manufacturer:
Yonico
MPN:
15129
Weight:
0.22 lbs.
