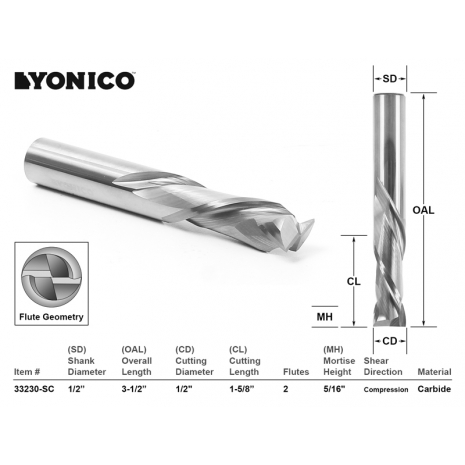

CNC Router Bit 2 Flute Compression Cut 1/2" X 1-5/8" 1/2" Shank- YONICO 33230-SC

$69.95
Short description:

Best for achieving a smooth finish on laminate or veneer finish applications.

  • Cutting Diameter: 1/2"
  • Cutting Height: 1-5/8"
  • Shank Diameter: 1/2"
  • Overall Length: 3-1/2"
  • Flutes: 2
33230-SC
In stock
+

Best for achieving a smooth finish on laminate or veneer finish applications.

  • Cutting Diameter: 1/2"
  • Cutting Height: 1-5/8"
  • Shank Diameter: 1/2"
  • Overall Length: 3-1/2"
  • Flutes: 2

Compression bits cut down from the top of the stock and up from the bottom of the stock simultaneously. The bit's unique and complex geometry forces the trimmed material to be compressed toward the center of the stock leaving behind a smooth & sharp finish free of chips on both the top and bottom edges. This bit can also be used for mortising projects that require a smooth bottom surface without sacrificing the mortised edge finish.

Pros: Produces smooth edges and mortises on veneer and laminate materials.
Cons: Less than optimal chip removal when dadoing or plunging.
(Choose an up cut spiral bit for standard more efficient milling.)

For use in CNC milling and carving machines.

Bit Specs

Material:
Solid Carbide
Number of Bits:
1
End Mill Type:
Compression
Shank Size :
1/2"
Cut Direction:
Compression
Cutting Diameter:
1/2"
Cutting Length:
1-5/8"
Overall Length:
3-1/2"
Number of Flutes:
2

General Info

Release Date:
09/16/2014
Condition:
New
Item #:
33230-SC
UPC:
765573828740
Brand:
Yonico
Product Type:
2 Flute Compression Cut Spiral End Mill CNC Router Bit
Manufacturer:
Yonico
MPN:
33230-SC
Weight:
0.4 lbs.
