Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

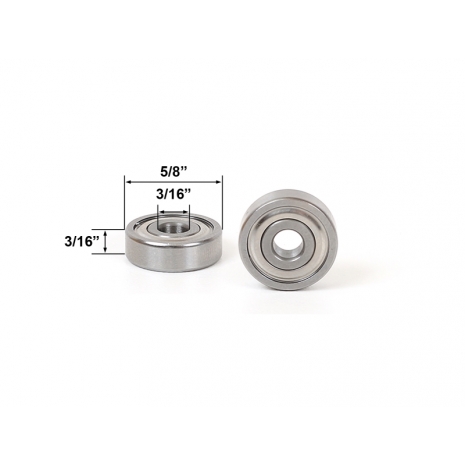

This Router Bit Replacement Bearing features an outer diameter of 5/8", an inner diameter of 3/16" and a height of 3/16". Typically, bearings with a 3/16" inner diameter are used on the end of flush trim, edge forming or rabbet router bits with an end stub that has a 3/16" diameter. This high quality ball bearing is well constructed and will endure many hours of use. This bearing can also be used as a standard utility bearing in whichever application that bearings are used.
Bearing Specs
Bearing Inner Diameter:
3/16"
Bearing Outer Diameter:
5/8"
Bearing Height:
3/16"
General Info
Release Date:
06/08/2016
Condition:
New
Item #:
10143
UPC:
765573830309
Brand:
Yonico
Product Type:
3/16" Inner Diameter Stub Bearing
Manufacturer:
Yonico
MPN:
10143
Weight:
0.03 lbs.
