Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

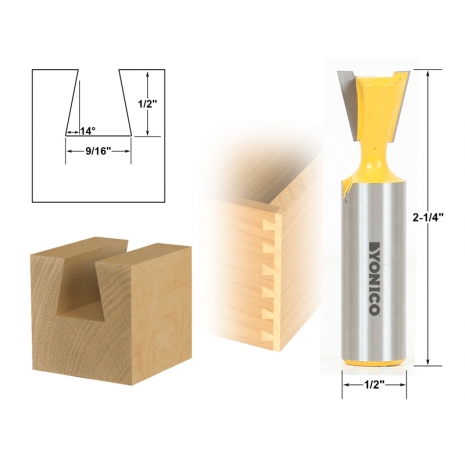

The Yonico 14112 14° Dovetail Router Bit can be used with a dovetail jig for half-blind dovetail joints or can be used together with dado bits to produce through-dovetail joints. 14° X 9/16" Cutting Diameter X 1/2" Height. 2 flute carbide cutters and 1/2" Shank.
Bit Specs
Material:
Tungsten Carbide
Number of Bits:
1
Cutting Diameter:
9/16"
Cutting Length:
1/2"
Overall Length:
2-1/4"
Largest Diameter:
9/16"
Degrees:
14°
Number of Flutes:
2
General Info
Release Date:
02/13/2015
Condition:
New
Item #:
14112
UPC:
765573828269
Brand:
Yonico
Design:
Dovetail
Product Type:
Dovetail Router Bit
Manufacturer:
Yonico
MPN:
14112
Weight:
0.13 lbs.
