Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

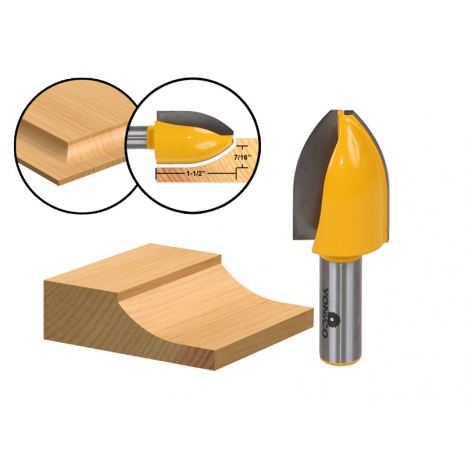

Create cove raised panels for cabinet doors vertically with the Yonico 12145 vertical panel raiser router bit. Two flute carbide cutters & 1/2" shank. Manufactured from C3 micrograin carbide, Yonico raised panel router bits create smooth, detailed cuts resulting in professional door panels.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
1-5/8"
Cutting Depth:
7/16"
Overall Length:
3-1/8"
Largest Diameter:
1-1/8"
Number of Flutes:
2
General Info
Release Date:
12/11/2012
Condition:
New
Item #:
12145
UPC:
765573825145
Brand:
Yonico
Design:
Cove
Product Type:
Vertical Raised Panel Router Bit
Application:
Cabinet Door
Manufacturer:
Yonico
MPN:
12145
Weight:
0.32 lbs.
