Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
---|---|---|
1
|
24,000
|
19,000
|
1.1
|
24,000
|
19,000
|
1.2
|
24,000
|
19,000
|
1.3
|
24,000
|
19,000
|
1.4
|
24,000
|
19,000
|
1.5
|
24,000
|
19,000
|
1.6
|
22,500
|
17,500
|
1.7
|
21,100
|
16,100
|
1.8
|
20,000
|
15,000
|
1.9
|
18,900
|
13,900
|
2
|
18,000
|
13,000
|
2.1
|
17,100
|
12,100
|
2.2
|
16,300
|
11,300
|
2.3
|
15,600
|
10,600
|
2.4
|
15,000
|
10,000
|
2.5
|
14,400
|
9,400
|
2.6
|
13,800
|
8,800
|
2.7
|
13,300
|
8,300
|
2.8
|
12,800
|
7,800
|
2.9
|
12,400
|
7,400
|
3
|
12,000
|
7,000
|
3.1
|
11,600
|
6,600
|
3.2
|
11,200
|
6,200
|
3.3
|
10,900
|
5,900
|
3.4
|
10,500
|
5,500
|
3.5
|
10,200
|
5,200
|

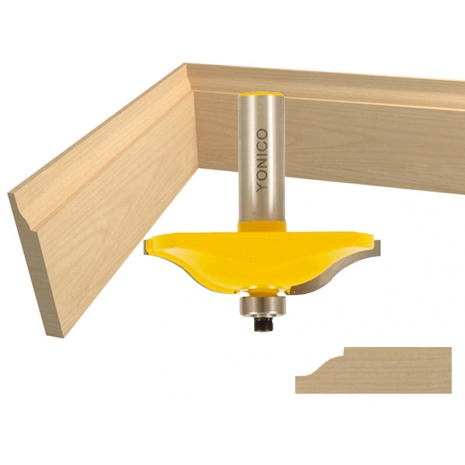

This versatile 2-1/2" diameter router bit can be used to make beautiful ogee design baseboards as well as raised panels for cabinet doors. Ogee design baseboards add beauty and style to any decor. When used as a panel raiser, this 2-1/2" router bit will create door panels with a smaller than standard profile. You may use in conjunction with any of our rail and stile router bits. Two flute carbide cutters & 1/2" shank.
