-22%

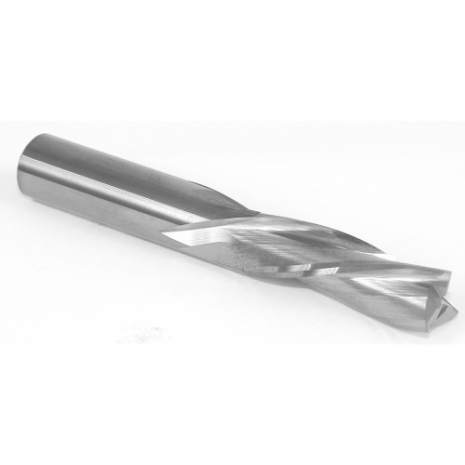

1/2" Diameter 3 Flute Low Helix Downcut Spiral End Mill CNC Router Bit - 1/2" Shank - Yonico 36360-SC

$38.95
List price: $49.95
Short description:

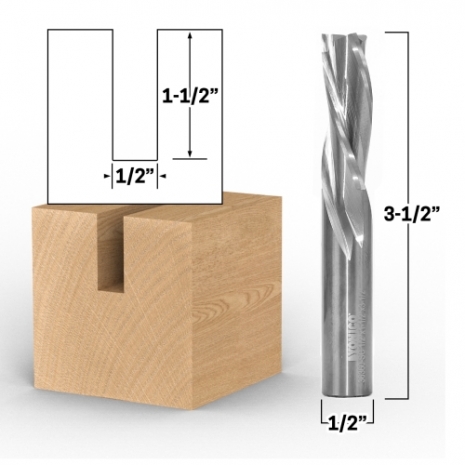

Best for achieving smooth finish on hard plastics.• Cutting Diameter: 1/2" • Cutting Height: 1-1/2" • Shank Diameter: 1/2" • Overall Length: 3-1/2" • Flutes: 3 Low Helix bits perform a more lateral movement with less lift resulting in a smoother finish. These bits are a better choice for hard plastics such as acrylic and phenolic. Downcut endmills shear in a downward direction causing the uppermost layer of the material to be pressed down against the material just below it. This motion leaves a perfectly clean top surface edge. A concentration of wood chips in the work path will occur. Hose away excess wood chips to prevent bit breakage.
36360-SC
In stock
+
To get a smooth finish in hard plastics like acrylic with your CNC router, use a low helix spiral end mill. The modified cutter angle produces a better finish in plastics than standard spiral bits. Downcut bits pull chips downward, producing a clean top edge in your parts. Consequently, the chips accumulate in the cut path and should be removed to prevent bit breakage. Low helix bits require slower feed speeds than normal "high helix" bits.

Bit Specs

Material:
Solid Carbide
Number of Bits:
1
End Mill Type:
Low Helix Downcut
Shank Size :
1/2"
Cutting Diameter:
1/2"
Cutting Length:
1-1/2"
Overall Length:
3-1/2"
Largest Diameter:
1/2"
Number of Flutes:
3

General Info

Release Date:
12/29/2020
UPC:
603915010814
Product Type:
3 Flute Low Helix Downcut Spiral End Mill CNC Router Bit
Manufacturer:
Yonico
