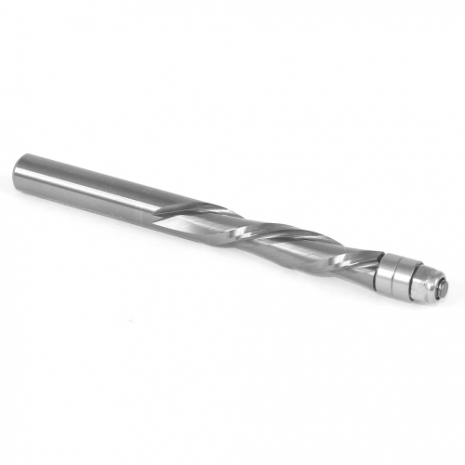

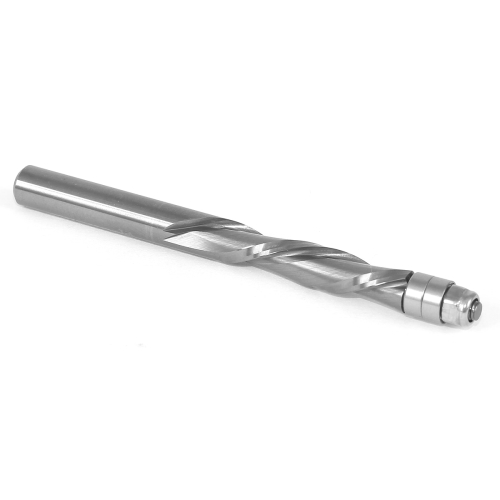

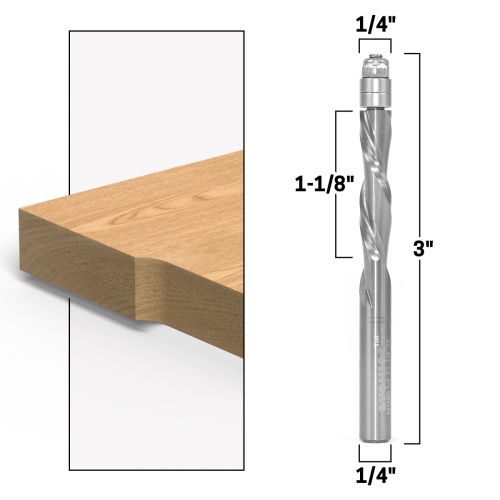

This solid carbide flush trim router bit is designed to provide precise, efficient cuts and offers extreme durability. The spiral design largely reduces chipping. For use with soft & hard woods, ply-woods, composites, laminates, plastics and some non-ferrous metals. The two independent ball bearings at the tip ensure smooth running. 1/4" shank.
Router Bit Tips and Safety
- Read the following instructions completely before router bit use. Failure to comply with instructions and warnings can result in serious bodily injury.
- Always wear protective eyewear when using power tools.
- Remove router bit protective coating before use.
- Inspect and tighten router bit components before use. DO NOT USE IF ANY FUNCTIONAL ROUTER BIT COMPONENTS CONTAIN CRACKS OR LOOSE HARDWARE.
- Insert at least 50% of router bit shank into router collet.
- Test router bit setup on scrap lumber.
- Follow chart below for suggested router speeds. Larger router bits require lower RPMs.
- Larger router bits require multiple passes to achieve smooth results.
| Router Safety Speeds (RPM) | |
| Bit Diameter | Maximum Speed |
| up to 1" | 22,000 - 24,000 rpm |
| 1" - 2" | 18,000 - 22,000 rpm |
| 2" - 2-1/2" | 12,000 - 16,000 rpm |
| 2-1/2" - 3-1/2" | 8,000 - 12,000 rpm |
