Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|

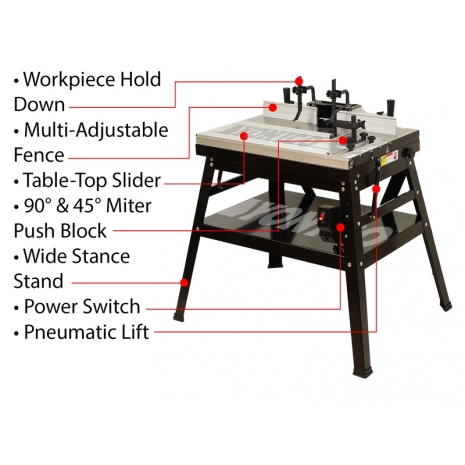

Similar to the Yonico 21046, this cast iron router table has all the same fantastic features plus the added convenience of a hydraulic lift and built-in sliding table.
Professional grade, extremely heavy, with a large cast iron work surface, provides excellent woodworking efficiency. Fully loaded with secure clamping system, direct router mounting, built-in dust collection port, secure miter gauge and more. Once set up you will be pleasantly surprised at how smooth routing can be on this cast iron routing table.
• Heavy weight, sturdy table for enhanced stability and work piece support weighing 124 lbs.
• Hydraulic lift – cast iron table tilts 45° to easily install router and/or adjust or switch router bits.
• Built–in sliding table with hold down clamp.
• Extra Large Total work surface - 22"×31".
• Includes two fences, each measuring 10-5/8" x 2". The split fence is easy to adjust and provides full support along both sides of the work piece.
• Secure clamping system – clamps fasten securely over stock to enable smooth, flush running along the fence.
• Universal Direct Router Mounting Feature- Virtually any router will clamp directly to the underside of the table eliminating the need for plate inserts. (No drilling necessary).
• Tabletop includes 2 removable ring inserts to accommodate for minimal clearance (1-1/8", 2-1/4" and 3-5/8") while using any size bit.
• 2" dust collection hood.
• Power switch with safety feature conveniently mounted on front leg
• Secure Miter Gauge – Miter gauge with several positive stops will stay put when secured in large tabletop T- slot.
• Main table surface: 30 3/4" x 9 7/8" ,Sliding table surface: 30 3/4" x 12 1/4".
• Heavy duty steel stand includes easy grip handles and shelf for convenient storage.
Expect 1 – 2 hours assembly. Some steps may require additional helping hands due to the heavy weight of this router table.
