Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com

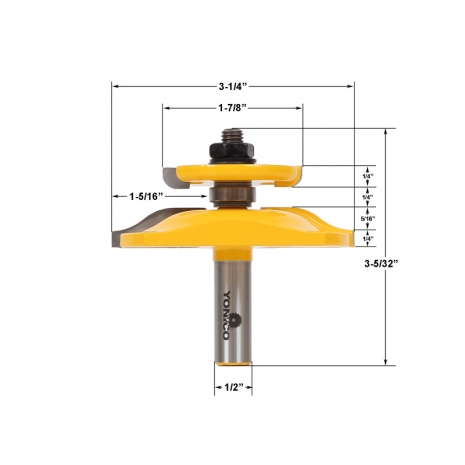

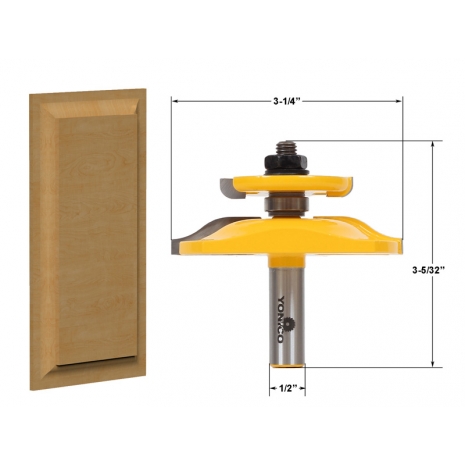

Cut beautiful ogee raised panels easily with this Yonico panel raiser router bit. The backcutter feature will reduce the tongue thickness to 1/4". Use with 5/8"-1" stock. Two flute carbide cutters and 1/2" shank.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
1
Cutting Length:
5/8"
Cutting Depth:
1-3/8"
Overall Length:
3"
Largest Diameter:
3-1/8"
Number of Flutes:
2
Bearing Specs
Bearing Outer Diameter:
1/2"
General Info
Release Date:
11/01/2012
Condition:
New
Item #:
12143
UPC:
765573825121
Brand:
Yonico
Design:
Ogee
Product Type:
Raised Panel with Back Cutter Router Bit
Application:
Cabinet Door
Manufacturer:
Yonico
MPN:
12143
Weight:
0.68 lbs.
