Router Bit RPM Chart
Warning: Make sure the router bit is properly fastened and tightened in the router’s collet and the bit can rotate freely without any obstructions.
Instructions: Slowly dial up the RPMs on your router to the recommended maximum. Then, dial back if needed to find the “sweet spot”. The sweet spot is the speed at which the least resonant vibration is present. If the sweet spot cannot be achieved within 5,000 RPMs of the max, check the collet for residue or other debris and start over.
Download Router Bit RPM Chart
|
Bit Diameter (Inches)
|
Max RPM
|
Min RPM
|
|---|---|---|
|
1
|
24,000
|
19,000
|
|
1.1
|
24,000
|
19,000
|
|
1.2
|
24,000
|
19,000
|
|
1.3
|
24,000
|
19,000
|
|
1.4
|
24,000
|
19,000
|
|
1.5
|
24,000
|
19,000
|
|
1.6
|
22,500
|
17,500
|
|
1.7
|
21,100
|
16,100
|
|
1.8
|
20,000
|
15,000
|
|
1.9
|
18,900
|
13,900
|
|
2
|
18,000
|
13,000
|
|
2.1
|
17,100
|
12,100
|
|
2.2
|
16,300
|
11,300
|
|
2.3
|
15,600
|
10,600
|
|
2.4
|
15,000
|
10,000
|
|
2.5
|
14,400
|
9,400
|
|
2.6
|
13,800
|
8,800
|
|
2.7
|
13,300
|
8,300
|
|
2.8
|
12,800
|
7,800
|
|
2.9
|
12,400
|
7,400
|
|
3
|
12,000
|
7,000
|
|
3.1
|
11,600
|
6,600
|
|
3.2
|
11,200
|
6,200
|
|
3.3
|
10,900
|
5,900
|
|
3.4
|
10,500
|
5,500
|
|
3.5
|
10,200
|
5,200
|
© PrecisionBits.com
- 1/2" Shank
- Premium Micro-Grain C3 Tungsten Carbide Cutters
- Industrial Quality
- Ball-Bearing Guide
- Solid Hardened Steel Body with Anti-Kickback Design
- Lifetime Warranty & Satisfaction Guaranteed

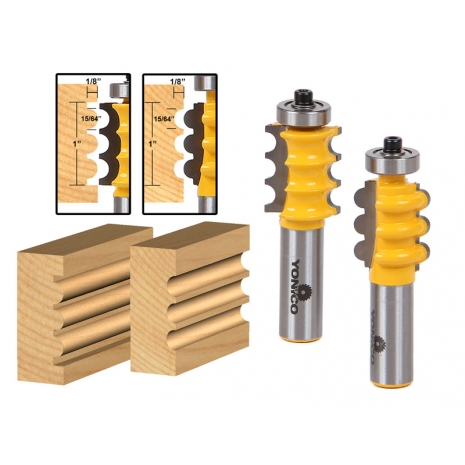

For 1" triple bead and triple flute column and face moldings.
Bit Specs
Material:
Carbide Tipped
Number of Bits:
2
Cutting Length:
1"
Cutting Depth:
1/8"
Overall Length:
2-7/8"
Largest Diameter:
7/8"
Number of Flutes:
2
General Info
Release Date:
02/04/2013
Condition:
New
Item #:
16261
UPC:
765573827347
Brand:
Yonico
Design:
Multi
Product Type:
Furniture Trim & Molding Router Bit
Manufacturer:
Yonico
MPN:
16261
Weight:
0.41 lbs.
