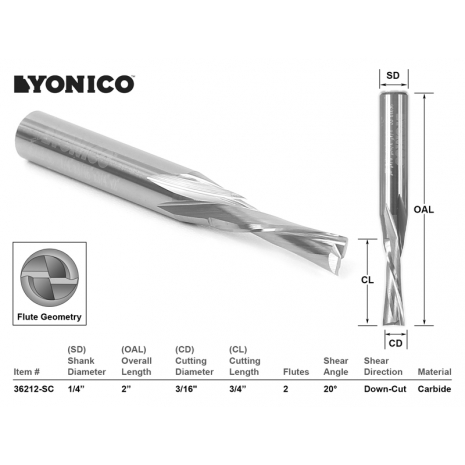

CNC Router Bit Low Helix Down Cut 2 Flute 3/16" Dia. X 3/4"- Yonico 36212-SC

$14.95
Short description:

Best for achieving smooth finish on hard plastics.

  • Cutting Diameter: 3/16"
  • Cutting Height: 3/4"
  • Shank Diameter: 1/4"
  • Overall Length: 2"
  • Flutes: 2
36212-SC
In stock
+

Description

Best for achieving smooth finish on hard plastics.

  • Cutting Diameter: 3/16"
  • Cutting Height: 3/4"
  • Shank Diameter: 1/4"
  • Overall Length: 2"
  • Flutes: 2

Low Helix bits perform a more lateral movement with less upward or downward motion resulting in a smoother finish on single layer materials. These bits are a better choice for hard plastics such as acrylic and phenolic.

Down cut endmills shear in a downward direction causing the uppermost layer of the material to be pressed down against the material just below it. This motion leaves a perfectly clean top surface edge. A concentration of wood chips in the work path will occur. Hose away excess wood chips to prevent bit breakage.

Pros: Produces smooth finishes on hard plastics,
Cons: Low helix bits require a slower feed rate than "high helix" router bits.

For use in CNC milling and carving machines.

Features

Bit Specs

Material:
Solid Carbide
Number of Bits:
1
End Mill Type:
Low Helix Downcut
Shank Size :
1/4"
Cutting Diameter:
3/16"
Cutting Length:
3/4"
Overall Length:
2"
Number of Flutes:
2
Flute Angle:
20°

General Info

Release Date:
11/12/2015
Condition:
New
Item #:
36212-SC
UPC:
765573829952
Brand:
Yonico
Product Type:
2 Flute Low Helix Downcut Spiral End Mill CNC Router Bit
Manufacturer:
Yonico
MPN:
36212-SC
Weight:
0.1 lbs.
