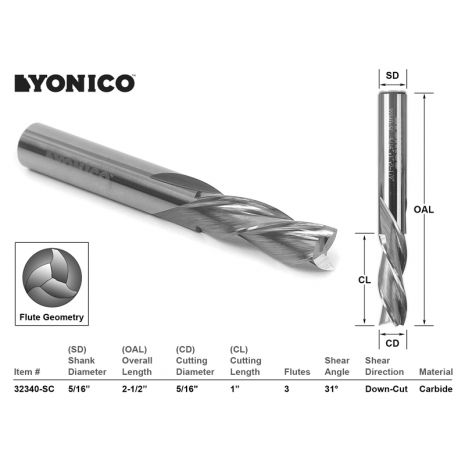

CNC Router Bit Down Cut 3 Flute 5/16" Dia. X 1" X 5/16" Shank - Yonico 32340-SC

$19.95
Short description:

Best used for: Laminate or veneer-finish plunging and dadoing.

  • Cutting Diameter: 5/16"
  • Cutting Height: 1"
  • Shank Diameter: 5/16"
  • Overall Length: 2-1/2"
  • Flutes: 3
32340-SC
In stock
+

Description

  • Cutting Diameter: 5/16""
  • Cutting Height: 1"
  • Shank Diameter: 5/16"
  • Overall Length: 2-1/2"
  • Flutes: 3
  • Down cut endmills shear in a downward direction causing the uppermost layer of the material to be pressed down against the material just below it. This motion leaves a perfectly clean top surface edge. A concentration of wood chips in the work path will occur. Hose away excess wood chips to prevent bit breakage.

    Pros: Prevents top surface edge chipping and tear-away.
    Cons: Less than optimal chip removal when dadoing or plunging.
    (Choose an up cut spiral bit for standard more efficient milling.)

    For use in CNC milling and carving machines.

    Features

    Bit Specs

    Material:
    Solid Carbide
    Number of Bits:
    1
    End Mill Type:
    Downcut
    Shank Size :
    5/16"
    Cutting Diameter:
    5/16"
    Cutting Length:
    1"
    Overall Length:
    2-1/2"
    Number of Flutes:
    3
    Flute Angle:
    31°

    General Info

    Release Date:
    11/12/2015
    Condition:
    New
    Item #:
    32340-SC
    UPC:
    765573829914
    Brand:
    Yonico
    Product Type:
    3 Flute Downcut Spiral End Mill CNC Router Bit
    Manufacturer:
    Yonico
    MPN:
    32340-SC
    Weight:
    0.15 lbs.
