Bevel Stacked Rail and Stile Router Bit - 1/2" Shank - Yonico 12123

$28.95
List price: $30.95
Short description:
This bevel stacked rail and stile bit can cut stock up to 1" and will cut a depth of 3/8". The slots are 1/4" thick and the shank diameter is 1/2".
12123-Y
In stock
+

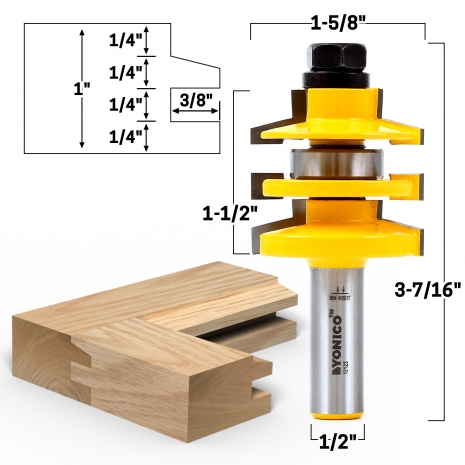

The Yonico Stacked Rail and Stile Router Bit will cut both the profile and cope for rail and stile cabinet doors with a single bit. Simply, cut the profiles with the middle and lower blades and then lower the bit in your table to make the cope cut using the middle and upper blades. No need to switch or reassemble cutters. This bit comes equipped with a radial ball bearing for easy cutting depth setup.

Bit Specs

Material:
Carbide Tipped
Number of Bits:
1
Shank Size :
1/2"
Cutting Depth:
3/8"
Overall Length:
3-7/16"
Largest Diameter:
1-5/8"
Number of Flutes:
2
Minimum Stock Thickness:
3/4"
Maximum Stock Thickness:
1"

Bearing Specs

Bearing Inner Diameter:
5/16"
Bearing Outer Diameter:
7/8"
Bearing Height:
9/32"

General Info

Release Date:
06/05/2019
UPC:
765573830958
Design:
Bevel
Product Type:
Stacked Rail and Stile Router Bit
Application:
Cabinet Door
Manufacturer:
Yonico
MPN:
12123
