3 Bit Edge Molding Router Bit Set - Large Designer - 1/4" Stock - Yonico 13322q

$21.95
Short description:
This set includes a round over bead, a roman ogee and a classical roman ogee profile. These designer profiles all have a cutting depth of 9/16". The round over bead has a 1/2" radius, roman ogee has a 9/32" radius and the classical roman ogee has a 7/32" radius. The shank diameters are 1/4".
13322q
In stock
+

Description

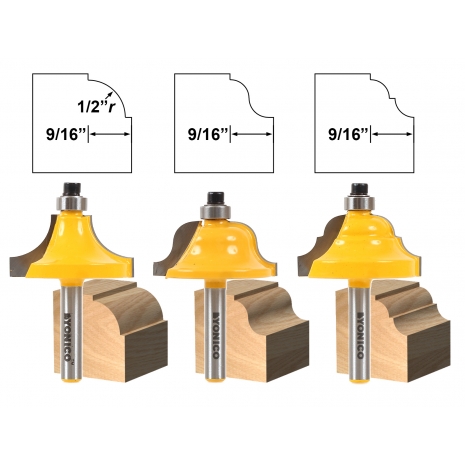

The Yonico 13322q includes the following 3 large profiles: Round over Bead, Roman Ogee and Double Roman Ogee.

Dimensions are as follows:

  • 1/2"r Round over Bead- 1-1/2" Diameter,3/4" Cutter Height, 2-3/8" Overall Height, 9/16" Cutter Depth
  • Roman Ogee - 1-1/2" Diameter, 21/32" Cutter Height, 2-1/4" Overall Height, 9/16" Cutter Depth
  • Double Roman Ogee - 1-1/2" Diameter, 3/4" Cutter Height, 2-3/8" Overall Height,9/16" Cutter Depth

Two flute carbide cutters and 1/4" shanks.

Features

Bit Specs

Material:
Carbide Tipped
Shank Size :
1/4"
Number of Flutes:
2

Bearing Specs

Bearing Outer Diameter:
23/64"

General Info

Release Date:
12/28/2016
UPC:
765573833478
Design:
Assorted
Product Type:
3 Bit Edge Forming Router Bit Set
Manufacturer:
Yonico
